1NCA Smart
Mullion Keyboard Lockbus
Credential reader with keyboard, RFID contactless multistandard, Bluetooth® with Lockbus connection.
A new range of multistandard readers
1NCA Smart Readers is an innovative range of multi-standard, wall-mounted and weatherproof readers of ISEO Connected products line, designed for access management in residential and light commercial buildings. These readers can be easily installed and can manage internal doors but also outdoor gates since they have the IP66 certification.
Elegant in every situation
All 1NCA readers combine leek and minimalist design with premium and durable materials, which is well suited to different environments.
Experience the perfect blend of elegance and reliability, elevating your security measures to new heights and unlocking your freedom to move.
Product features
- Memorize up to 300 users credentials
- Records the last 1000 events
- Wake up by RFID card detection or phone (patented)
- Low energy consumption device
- Real Time Clock/Calendar
- Light and acoustic signals
- Permanently open mode (office mode) without extra battery consumption
- Block the Standard Users allowing access only to VIP users
- Programming and software updates by Argo app on iOS and Android devices

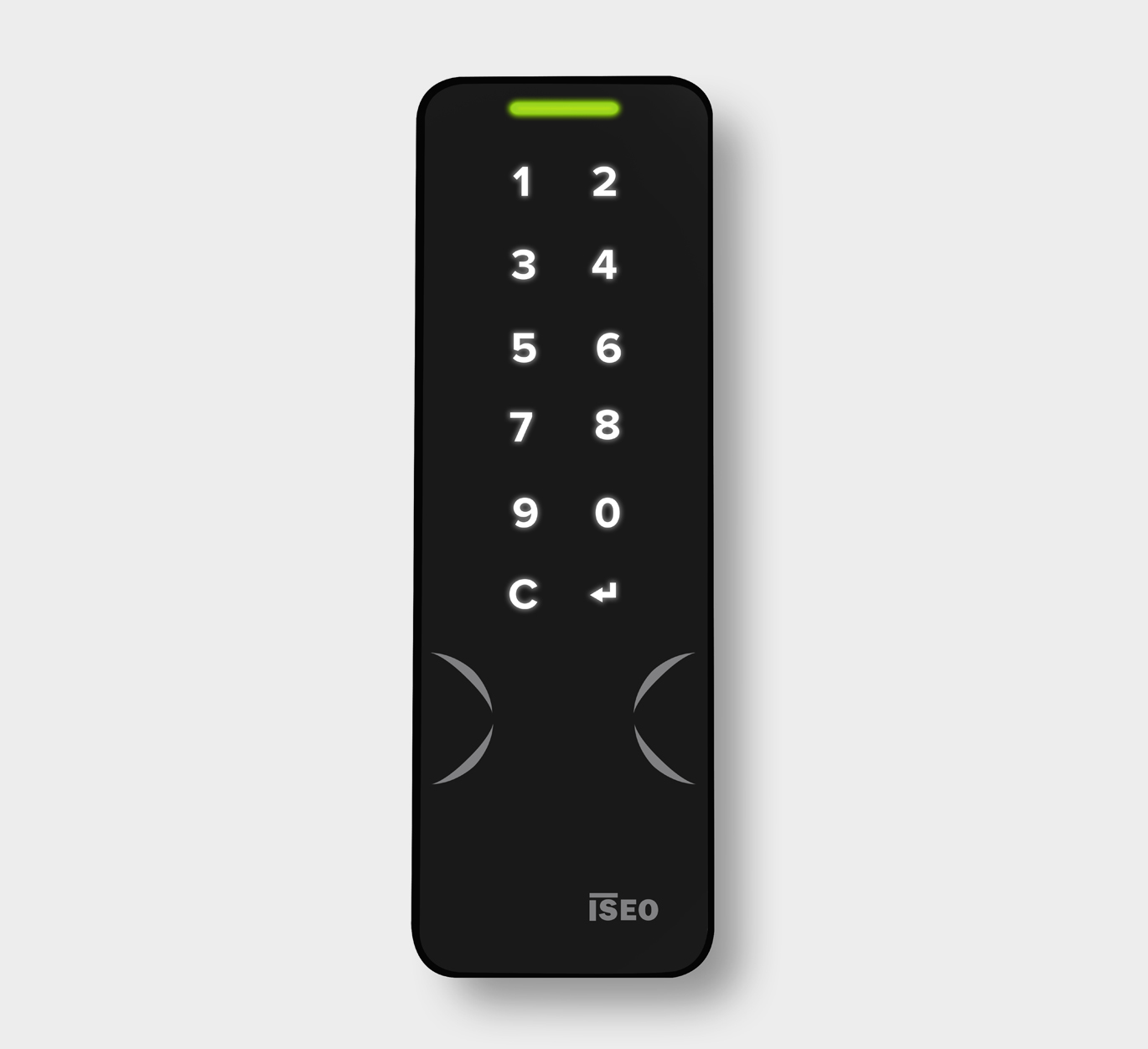

1NCA Smart Mullion Keyboard Lockbus

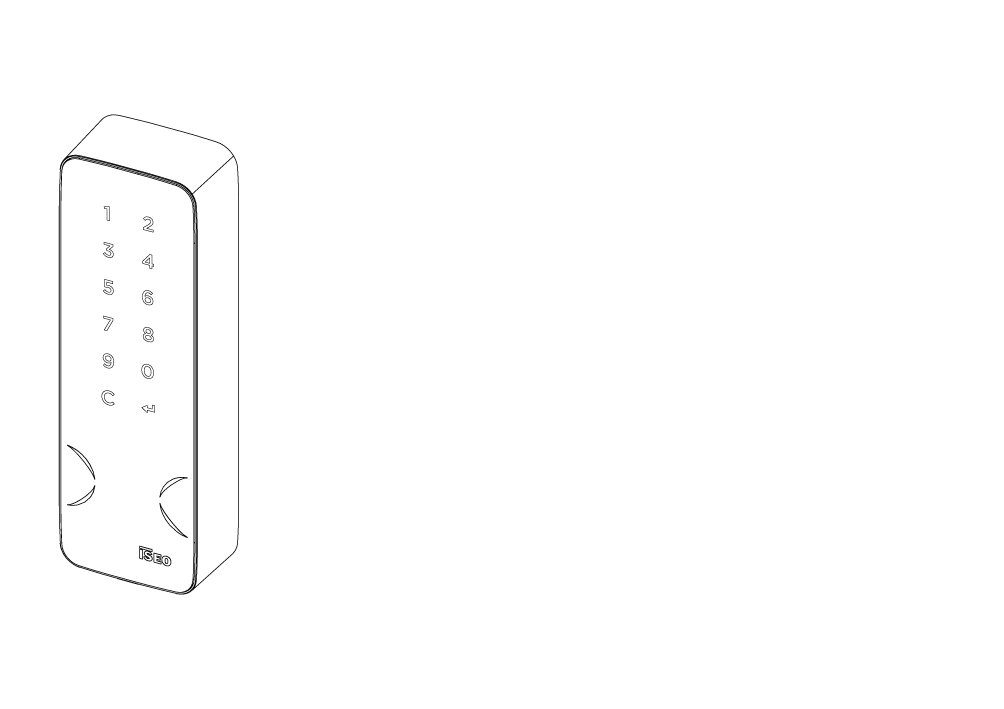

Dimensions
- Height: 146mm
- Width: 48mm
- Depth: 26mm
- Width: 48mm
- Depth: 26mm
Finish
Technopolymer
Glass
Colour
Glossy black
cod. 5E152325
Access credentials
- Badge
- Keyfob
- Bracelet
- Smartphone
- Apple Watch
- Numeric Keypad
Communication interface
- RFID ISO14443B/Mifare ISO14443A
- Bluetooth® Low Energy 5.1
Certifications
Technical features
Firmware
ARGO
Power unit
9÷24 Vdc (1W)
Automatic low power mode max 0,4mW
Internal CR2032 3V Lithium battery for RTC (real time clock) backup
Alerts
- Led 3-colour series green, red, blue
- Multi-frequency buzzer
Product compatibility
Device with Lockbus interface. Suitable as a replacement of Stylos Smart, to couple with the electric lock actuator (5E2501)
Mounting
- Wall mounted
Environmental features
- IP66
- H.R. max. 95% without condensing
Working temperature
-20°C ÷ +70°C
Storage temperature
-25°C ÷ +75°C
Package
1 reader, 1 fixing bracket, Torx T8 key, 1 x Fixing bracket Torx screw (M2,5x5), instruction manual,
2 x Screws (3,5x25 countersunk head) and wall plugs (5x25), spacer with screws (cod. 0000IS00354 )
Accessories (not included)
Electric lock actuator (cod. 5E2501)
Power supply 24Vdc 1.5 A power supply (cod. 5E3506)
Power supply 24Vdc 1.5 A power supply (cod. 5E3506)
Compatibility with ISEO applications
ARGO
LUCKEY
LSA
V364
