Sofia Desk

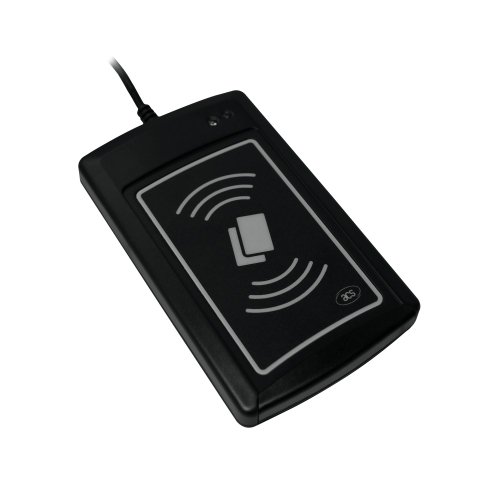

USB2 Desk RFID UID Reader Mifare
Contactless UID reader of RFID cards or NFC tags
The contactless UID reader of NFC tags
HyperDesk is a contactless reader of NFC Tags' UID. It automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card. When presented with a contactless card or Tag, the HyperDesk retrieves the IC’s UID and automatically returns it to the PC. The reader enables output of the UID directly to Sofia Luckey. HyperDesk works with no software.
Product features
- It automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card.
- The reader enables output of the UID directly to Luckey.
Sofia Desk USB2 Desk RFID UID Reader Mifare
Dimensions
120.5 x 72 x 20.4 mm
Weight
140 g
Material
Technopolymer
Colour
Black
cod. 004S107
Communication interface
- RFID ISO14443B/Mifare ISO14443A
Certifications
Technical features
Firmware
SOFIA
Hardware specifications
USB 2.0 Full Speed Interface
USB HID Keyboard Class Emulation
Operating Frequency 13.56 Mhz
Read speed up to 848 kbps
Read distance up to 50 mm (depending on Tag's antenna)
USB HID Keyboard Class Emulation
Operating Frequency 13.56 Mhz
Read speed up to 848 kbps
Read distance up to 50 mm (depending on Tag's antenna)
Alerts
- LEDs: 1 Green, 1 Red
- Multi-frequency buzzer
Product compatibility
Compatible with ISEO CONNECTED locks when connected to Sofia Luckey.
Compatible with operating systems: Windows®, Mac OS®, Linux, Android™
Compatible with operating systems: Windows®, Mac OS®, Linux, Android™
Mounting
- Desktop
Environmental features
- H.R. 90% max
Working temperature
0°C ÷ +50°C
Package
1 Reader, instruction sheet
Compatibility with ISEO applications
ARGO
LUCKEY
LSA
V364
